1. Three disk magnetic separator product introduction:

There are two types of three disk electromagnetic systems: CP-500 and CP-600. The three disk magnetic separator is applicable to the selection of magnetic difference metal minerals such as titanium ore, tungsten tin ore, Chromite, niobium tantalum ore, Limonite, zircon, golden red, solitary, Andalusite, kyanite, feldspar, quartz, or the iron remover of non-metallic materials, as well as the selection and purification of magnetic and non-magnetic minerals.

2. Principle of Three Disk Magnetic Separation Machine

The three disk magnetic separator is a very important beneficiation equipment used to select weakly magnetic minerals and rare metal minerals with a size of less than. Three disc magnetic separators are divided into two types. The three disc magnetic separator is suitable for the separation of various magnetic mineral mixtures. According to the magnetic differences of minerals, minerals can be separated by adjusting the excitation current of each level of disk to form a magnetic field of different intensities, or by adjusting the induction distance between each level of disk and the selected mineral to obtain different magnetic field induction intensities, thus achieving primary separation of various minerals. The three disk magnetic separator is widely used for dry separation of magnetic and non-magnetic minerals such as Ilmenite, monazite, tungsten tin ore, Tantalite, etc.

3. Product features of the three disk magnetic separator:

The single machine structure of the three disc magnetic separator is reasonable, with a small footprint and simple operation and maintenance. It can separate minerals such as strong magnetism, weak magnetism, and non magnetism at once. The three disc magnetic separator is suitable for dry operation in water deficient mining areas.

4. Three disk magnetic separator product structure:

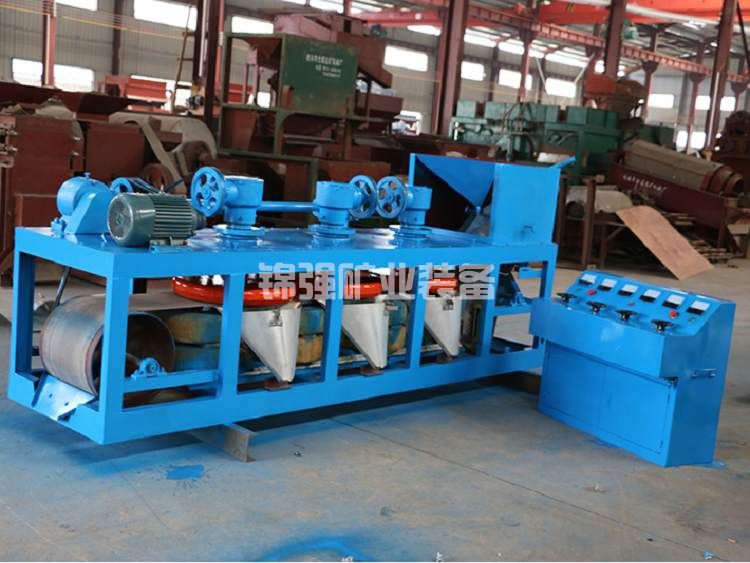

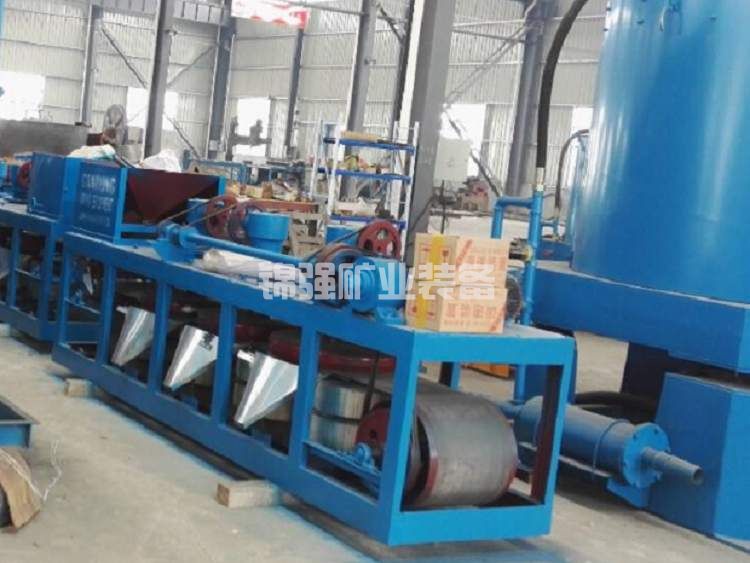

The main body of a three disc magnetic separator is composed of a rotating disc and a vibration groove (or belt) suspended above the magnetic system.
